Cable Tie Installation Tools
Hayata’s cable tie installation tools are a productivity boost for any project that requires secure, consistent fastening or binding. Our robust installation tools are designed for ease of use and maximum efficiency by providing a faster way tp tighten and secure your cables and wires in place. These tools will work with a variety of cable tie products, including nylon, metal and stainless steel cable ties. Whether you’re working in the electrical industry, HVAC, or construction, Hayata’s cable tie installation tools are an essential accessory that can help you get the job done quickly, safely, and efficiently.
“ Delivers uniform tension for each installation, which means consistant tensioning for the entire job.”
Interested in This Product?
Product Order Request
BT-15000
Battery Powered Cable Tie Installation Tool
Delivering longer-lasting power in a lighter, more compact tool, Hayata’s BT15000 QuikTie™ installs coated and uncoated cable ties ranging in widths from 1/4″ to 5/8.” Hayata introduced the first compact battery-powered installation tools on the market and we continue to innovate in this vital area.
FEATURES
- 12-volt Lithium-ion battery delivers 50% longer life (compared to the BTX014000)
- Recharges in 30 minutes and operates at low temperatures (-4°F / 20°C)
- Two batteries included
- Low battery indicator
- 10% lighter unit weight* and new hex grip design for easier handling during installations
- Variable torque adjustment – up to 265 lbs.
- Built-in trigger activated work light
- 5:1 productivity ratio advantage over standard tools (20% performance improvement*)
- Easy-to-use manual cut-off lever
- Delivers uniform tension for each installation, which means consistant tensioning for the entire job
- Offers more control over tension vs. manual tools, lowering risk of damage to the cable jacket
- Patent-pending
HAMMERHEAD CT-7
Manual Cable Tie Installation Tool
The Hayata Hammerhead CT-7 manual ratchet tool is designed to make stainless steel cable tie installations more efficient and tooling investments last longer. Hammerhead is Hayata-strong, designed for heavy-duty use and abuse in hard to access areas. This tool is very popular with installers.
Load – install – tighten – repeat!
Features
- Flat heavy-duty “Hammerhead” nose can be used to hammer down cable tie head or tail if required
- 3-way handle for one or two-handed operation • Lightweight design reduces installer fatigue
- Easy to load and easy material removal Hammerhead is Hayata-strong, designed for heavy-duty use and abuse in hard to access areas
Hayata Product Number: CT-7
Weight: 2.45 Lb (1.11 Kg)

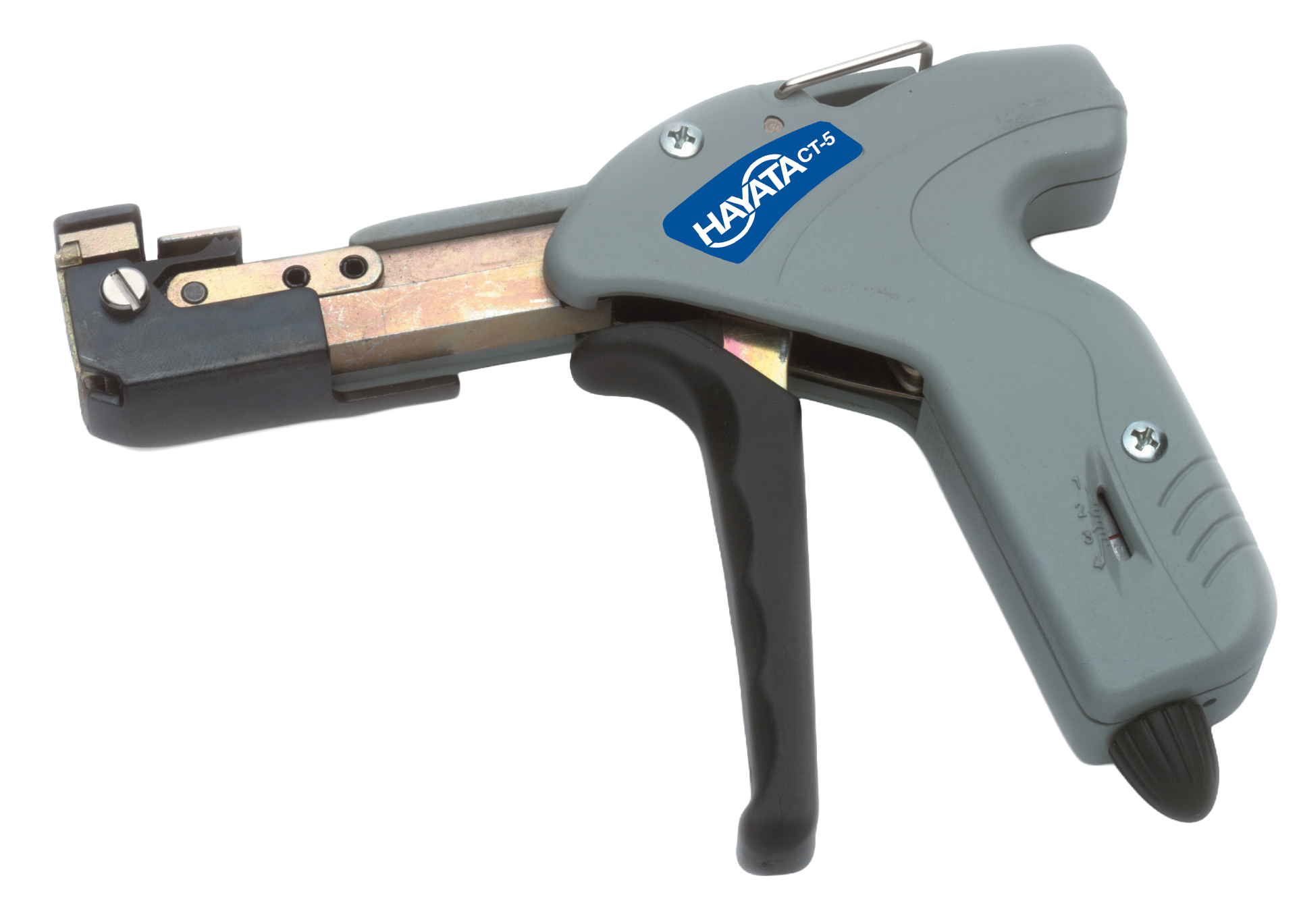

CT-5
Manual Cable Tie Installation Tool
Manual tool with preset tension adjustment control which can allow for uniform tension setting and automatic cutting on each bundle. Lightweight, which allows one-hand operation.
Hayata Product Number: CT-5
Weight: 1.4 Lb (.64 Kg)

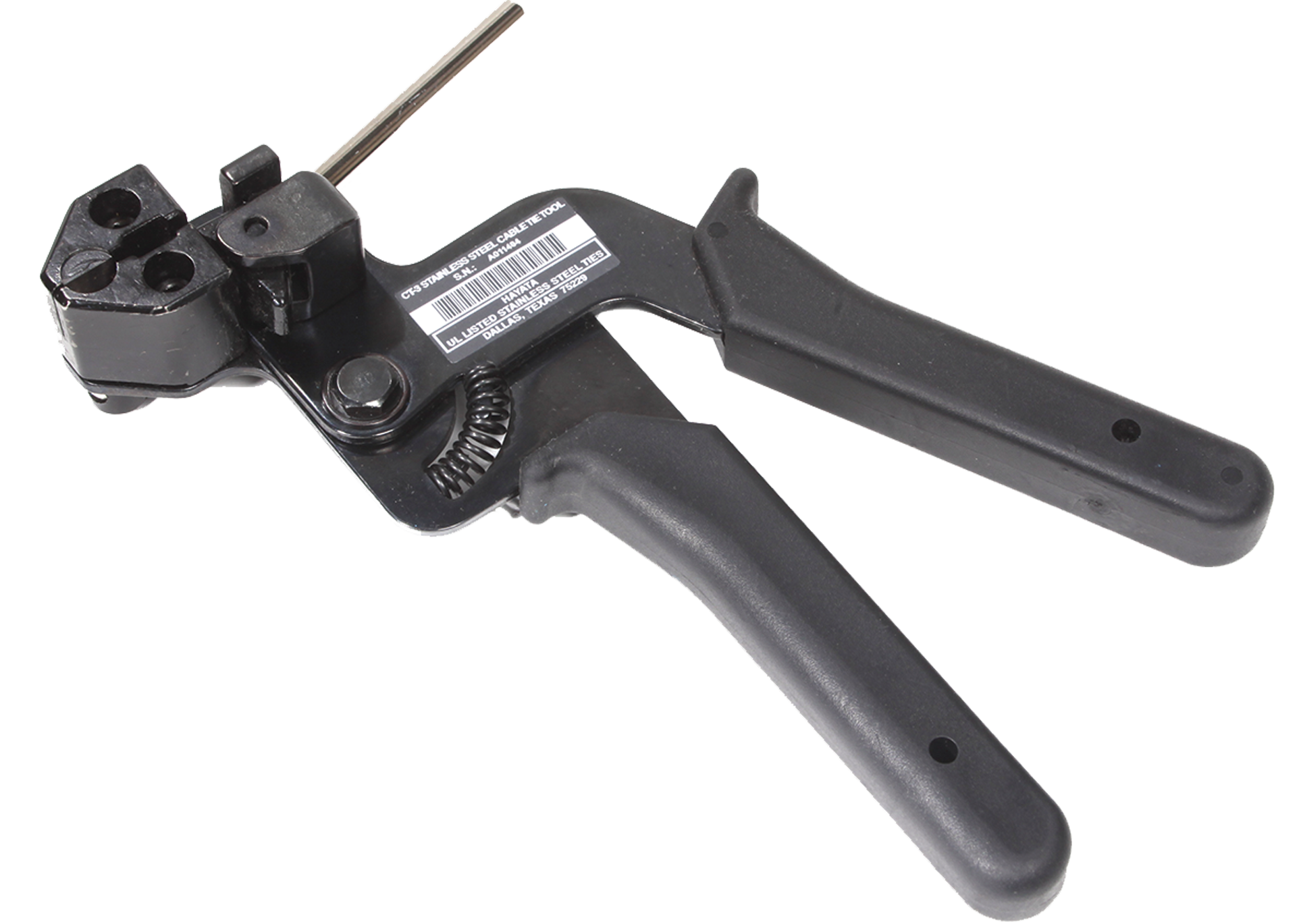

CT-3
Manual Cable Tie Installation Tool
Manual tool which tensions and cuts steel ties. Offers close cut to the head when removing stainless steel tie tail.
Hayata Product Number: CT-3
Weight: 1.4 Lb (.64 Kg)
CT-4
Tensioning Hook Tool
Tensioning hook tool used with releaseable and ladder stainless steel ties, both coated and uncoated.
Hayata Product Number: CT-4
Weight: 0.1 Lb (.05 Kg)
Use this Compatibility Chart to match the right tool to your Hayata Cable Tie.
Download this guide as a pdf by clicking here.
